 Post subject: How To Video: PC Cable & Wire Managment
PostPosted: Sun Mar 30, 2008 3:48 am
Sharptooth
Sharptooth
User avatar

Joined: Sat Nov 20, 2004 3:42 pm
Posts: 378
Location: Mpls, Mn
PC Cable Management Video


Jay & I perform cable management to PC with PCP&C PSU in just over an hour with zip ties and bases.

Intel Core 2 Duo E6550 Conroe 2.33GHz LGA 775 65W Dual-Core Processor
Abit IP35 Pro Motherboard
ARCTIC COOLING Freezer 7 Pro 92mm CPU Cooler
Lian Li PC-7 plus midtower
PC Power & Cooling "Silencer" 610W
EVGA 8800 GTS


Top
  Profile

 Post subject:
PostPosted: Tue Apr 01, 2008 1:54 pm
Sharptooth
Sharptooth
User avatar

Joined: Sat Nov 20, 2004 3:42 pm
Posts: 378
Location: Mpls, Mn
Cable job in Harley Davidson PC 8)





Top
  Profile

 Post subject:
PostPosted: Wed Apr 02, 2008 5:08 am
Sharptooth
Sharptooth
User avatar

Joined: Sat Nov 20, 2004 3:42 pm
Posts: 378
Location: Mpls, Mn
Well, my desk has an octopus coming out of it. I found some great sources for manageing those pc cables around your desk too!, cable safe My friend Dave turned me onto hook & loop velcro cable ties for organizing larger cables, sold here Theres also cable conduit you can use.


Top
  Profile

 Post subject:
PostPosted: Sat Apr 05, 2008 4:55 am
Sharptooth
Sharptooth
User avatar

Joined: Sat Nov 20, 2004 3:42 pm
Posts: 378
Location: Mpls, Mn
Ralf Hutter who reviews for silentpc-review, performs the cleanest & most air flow efficiant cable jobs I've seen yet.

Antec 3700

Thats how you use ribbon cables!

Antec 3700

Antec SLK2650-BQE


Top
  Profile

 Post subject:
PostPosted: Sat Apr 05, 2008 5:39 pm
8086
8086

Joined: Mon Jun 19, 2006 4:57 pm
Posts: 49
thanks this is really helpful


Top
  Profile

 Post subject:
PostPosted: Sun Apr 06, 2008 3:11 am
8086
8086
User avatar

Joined: Sun Dec 17, 2006 9:44 am
Posts: 35
Location: Rhode Island
Extremely helpful, thanks! :wink:


Top
  Profile

 Post subject:
PostPosted: Sat Apr 12, 2008 1:31 pm
Team Member Top 500
Team Member Top 500
User avatar

Joined: Mon Jan 08, 2007 1:41 pm
Posts: 2033
That was a great video, thanks! Organizing and routing cables isn't rocket science, but I watched this vid and it got me going. :D

I have an Antec 900 and this is my first build. When I originally built it about a year ago, the cables were just godawful. A few days later I rebuilt it because I installed a zalman 9500 and I also made an attempt at cable management. This is what you see in the before shot.

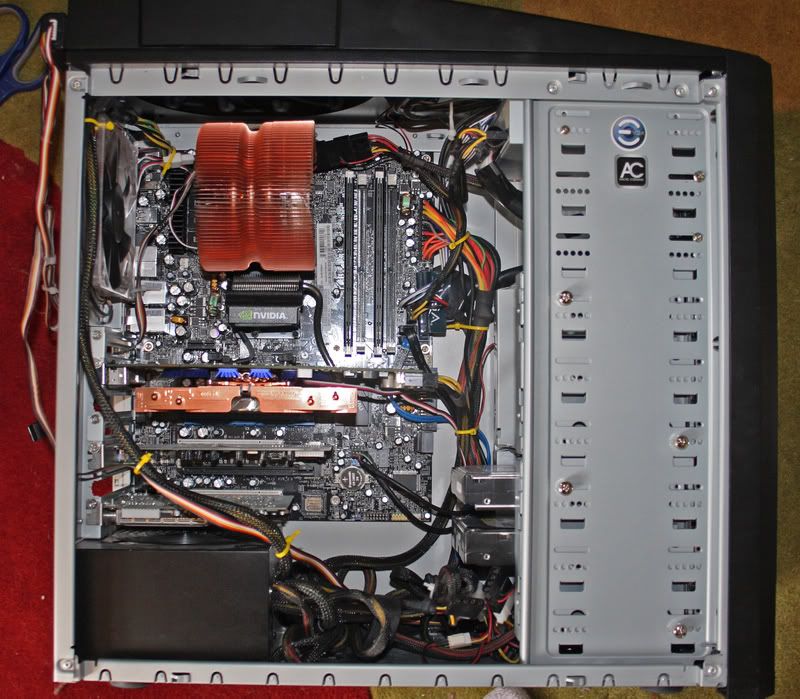

Today I basically just stripped it down and tried to route stuff nicer. I moved the hdd's down and turned them backwards to hide their cables (neat trick). The 900 is really nice, but it can get cramped when you're trying to wire it. I didn't want to dremel any holes to get wires behind the mobo tray because that would require removing everything, but I did drill a few as anchor points for zip ties. You can't see it too well in the after shot, but all of those cables btwn the mobo and hdd cages are flat against the case. That in itself is a big improvement. A few people here just cut off the psu cables they don't use, but I didn't think they were doing any harm at the bottom of the case (p.s. you save them and solder them back on if you need them :wink:)

The only minor difference I saw in temps was the cpu... maybe 1-2 degrees cooler. But it's a lot nicer to look at now, lol. I don't think I did too badly.

Cable management is definitely a bit harder when you have a bottom-mount PSU. ATX was just designed to have the PSU at the top where all the power connections are.



Top
  Profile

 Post subject:
PostPosted: Sat Apr 12, 2008 7:01 pm
Team Member
Team Member
User avatar

Joined: Wed Oct 05, 2005 6:51 am
Posts: 545
I know that you just redid everything, but i did notice the direction that your Zalman was facing. I recently did a build for a buddy using that Zalman and the Antec 900. What's cool about the positioning in that case is that you can have the Zalman Blowing air into the Large Blow hole fan at the top and the hot air is immediately evacuated. You should turn your Heat sink 90 Degrees to get that effect.


Top
  Profile

 Post subject:
PostPosted: Thu Apr 24, 2008 3:05 pm
Sharptooth
Sharptooth
User avatar

Joined: Sat Nov 20, 2004 3:42 pm
Posts: 378
Location: Mpls, Mn
I'm glad the guide has inspired you! Thanks for posting your results! As you learned, it can be very time consuming too 8)

Heres the video link again if anybody who missed it.

PC Cable Management Video


Top
  Profile

 Post subject:
PostPosted: Thu May 15, 2008 2:08 am
Sharptooth
Sharptooth
User avatar

Joined: Sat Nov 20, 2004 3:42 pm
Posts: 378
Location: Mpls, Mn
Rita, I know the owner of the case on the left, thats Paul Edwards

fyi: Antec is now including holes for cable management in their case designs check out the review of the P180 Mini P180 here,

casemodblog.com
